Weapon Details: SIG P210-4 BGS   (Created: 27.12.2015, Changed: 09.04.2022)

Weapon Details | Pictures (49) | Market monitoring (396) | Ammunition (6) | Accessories (6) | Attachements (1) | Manufacture Dates (6)



Weapon Details (Top):

Weapon: SIG P210-4 BGS Calibre: 9mm Para First Issued: 1951 Overall Length: 215 mm Weight (unloaded): 885 g Barrel Length: 120 mm Rifling: 250 mm Grooves: 6 Magazine Capacity: 8 Rounds Permission required: Ger: Waffenerwerbschein der zuständigen Polizeibehörde.

Description:

Further links to SIG P210 on this website: SIG P210-1 and SIG P210-2 Swiss Army (Pistol 49, P49) SIG P210-1 and SIG P210-2, police and private versions SIG P210-3 Police version SIG P210-4 BGS Federal Border Guard SIG 210 S.P. 47/8 SIG M/49 Denmark   When the Federal Border Guard (BGS) of the young Federal Republic of Germany (FRG) was founded in 1951, the question of armament arose.   Interestingly enough, they decided to buy the very expensive SIG P210 pistol, which cost about CHF 185.00 with a replacement magazine in 1951, although there had to be enough German weapons (e.g. pistol 08 P08, pistol 38 P38 etc.).   The SIG pistol was slightly modified at the request of the BGS and received a loading indicator on the top of the sled, in addition the safety strap clip was dispensed with.   The modified gun was given the designation SIG P210-4 at SIG, at the BGS it was introduced as "self-loading pistol SIG 9mm", in short "SP SIG 9mm".   In 1951 a total of 5,000 units were ordered and delivered in two batches. In 1955 another 21 weapons were ordered and delivered. (See manufacturing data below).   The weapons were given their own number range (letter "D") by SIG. The grip and breech are sandblasted. The first 500 pistols were equipped with cross-grooved wooden grip shells, the other weapons with black plastic grip shells. As already mentioned, they do not have a sling swivel, but a loading indicator on the top of the slide. On the side of the sled, the weapons received a stamp of the Federal Ministry of Data and Property (BMDV1), the predecessor of the Federal Ministry of the Interior (BMI). From 1980 onwards, weapons still in existence were given an additional BMI stamp on the base of the trigger guard in order to sell them on the open market. Pistols without a BMI stamp were already sold before 1980. The SIG P210-4 was replaced by the pistol "P6" (SIG P225). The so-called Bernerprobe (BP) was not ordered for reasons of economy; in the Bernerprobe, the guns are marked in Switzerland after they have been successfully fired with an overload of about 33%. The firing was carried out ex works and again at the BGS itself.   In order to practice with inexpensive ammunition, the BGS ordered a total of 443 interchangeable systems in calibre .22 Long Rifle from SIG. The KK interchangeable systems had the numbers D 1 to D 443, but were not delivered together with the corresponding weapons D 1 and D 443. Nevertheless, there are said to be some "identical-numbered" sets of pistol and KK interchangeable system, which came together more or less by chance. The price for a KK interchangeable system at that time was CHF 123.   With the foundation of the Bundeswehr, units of the BGS were taken over into the Bundeswehr and so SIG P210-4 were also used by the Bundeswehr (among others by the military police). The first Bundeswehr designation for the P210-4 was "Pistol Neuhausen", later "P2". In the German Armed Forces the pistol P38/P1 (Walther P38) soon replaced the SIG P210-4, at the BGS the SIG P210-4 remained in service until the end of the seventies.   The black leather pistol holsters for the SIG P210-4 were specially made, brown holsters for officers are said to exist. The holsters were stamped inside with BMDV2, BMI, Geco or manufacturer's stamp.   The company Frankonia Jagd (Würzburg) ordered another series of the SIG P210-4 from SIG in 1995, which received the numbers D 6001 to D 6500. The guns were equipped with wooden grip shells and had the holes for the sling catch in the grip, otherwise they were identical in construction to the BGS SIG P210-4.




Market monitoring (Top):

Click for details: Market monitoring (396)



Ammunition (Top):

Pistolenpatrone 41 Manipulier
9mm Parabellum (Luger), kommerziell
Pistolenpatrone 41 (9mm Pist Pat 41)
Pistolenpatrone 41 Versuch
Pistolen-Markierpatrone 77
Pistolenpatrone 14 (9mm Pist Pat 14)



Accessories (Top):

Lothar Walther Einstecklauf SIG P210
Lienhard Einsatzapparat SIG P210
Furter Rimfire System SIG P210
SIG Rimfire System SIG P210
Wyss Rimfire System SIG P210
Kornschieber SIG P210



Attachements (Top):

SIG P210 Gebrauchsanleitung, August 1983 (PDF, 1.2 MB, Source: Scan by swisswaffen.com)



Pictures (Top):

Full size (1.3 MB) GER: SIG P210-4 BGS (Bundesgrenzschutz). Die Waffen des BGS verfügten über einen Ladeanzeiger. Am Griff war keine Oese für das Anbringen eines Fangriemens vorhanden. Nummerierung mit dem Präfix "D".



GER: SIG P210-4 Bundesgrenzschutz (BGS)
Full size (1.3 MB) GER: SIG P210-4 BGS (Bundesgrenzschutz). Die Waffen des BGS verfügten über einen Ladeanzeiger. Am Griff war keine Oese für das Anbringen eines Fangriemens vorhanden. Nummerierung mit dem Präfix "D".	Full size (1.2 MB) GER: SIG P210-4 BGS (Bundesgrenzschutz). Die Waffen des BGS verfügten über einen Ladeanzeiger. Am Griff war keine Oese für das Anbringen eines Fangriemens vorhanden. Nummerierung mit dem Präfix "D".	Full size (1.3 MB) GER: SIG P210-4 BGS (Bundesgrenzschutz). Die Waffen des BGS verfügten über einen Ladeanzeiger. Am Griff war keine Oese für das Anbringen eines Fangriemens vorhanden. Nummerierung mit dem Präfix "D".	Full size (751 KB) GER: SIG P210-4 BGS (Bundesgrenzschutz). Blick von oben auf den Ladeanzeiger.	Full size (1 MB) GER: SIG P210-4 BGS (Bundesgrenzschutz) in zugehörigem Holster.
Full size (791 KB) GER: Holster zu SIG P210-4 BGS (Bundesgrenzschutz).	Full size (758 KB) GER: Holster zu SIG P210-4 BGS (Bundesgrenzschutz).	Full size (1.6 MB) GER: Holster zu SIG P210-4 BGS. Links: ohne Ersatzmagazinschutz Rechts: mit Ersatzmagazinschutz
SIG P210-4 BGS

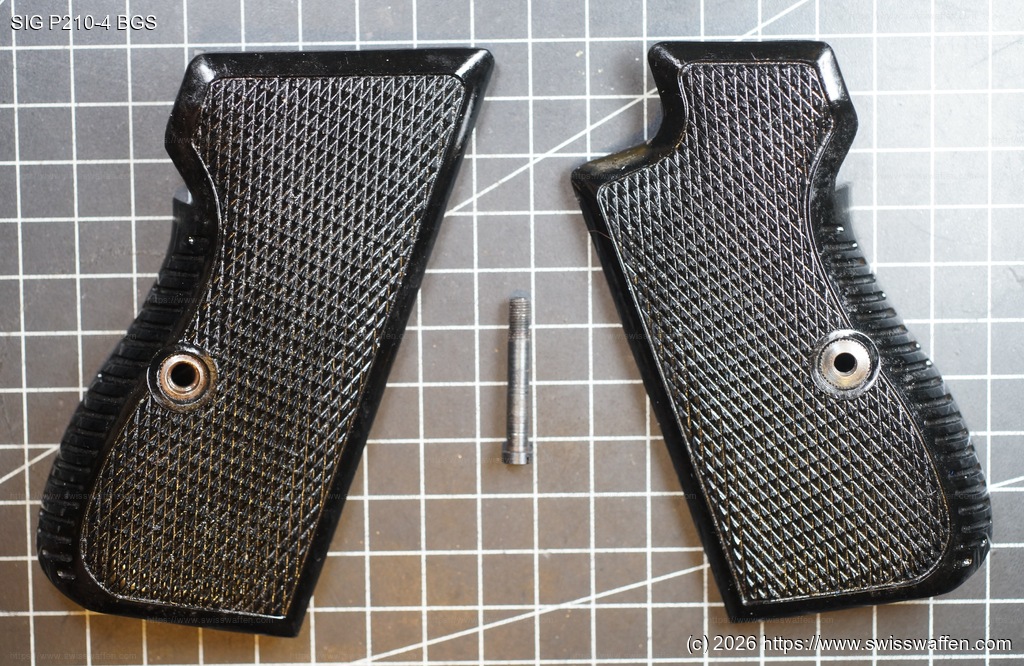

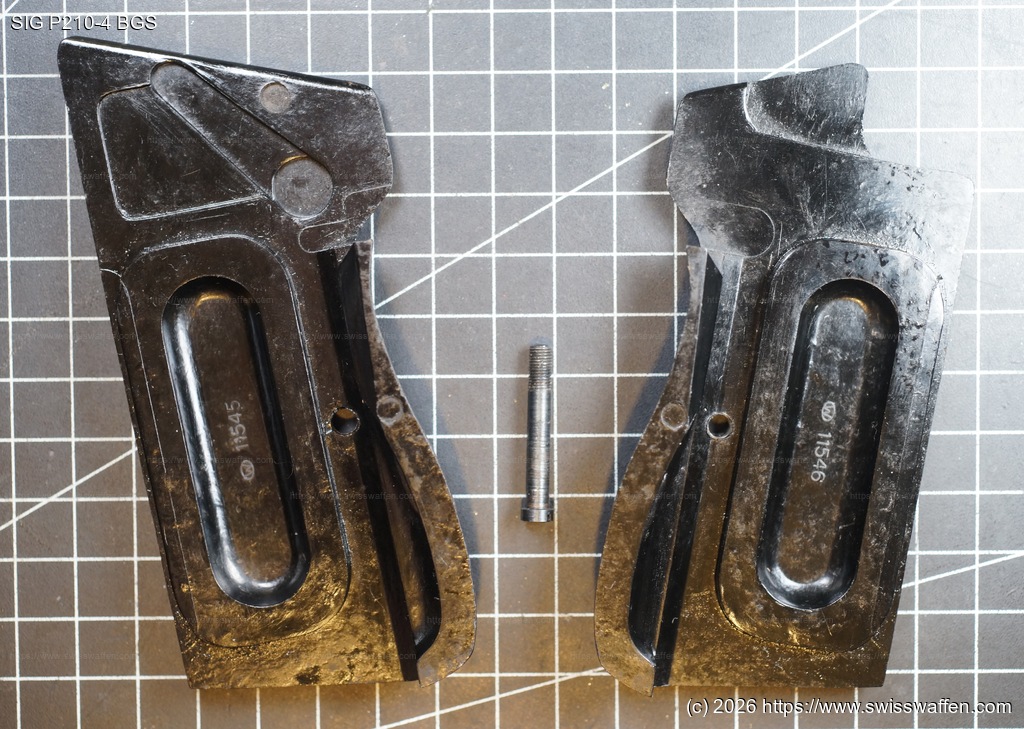

Full size (1.6 MB) SIG P210-4 BGS	Full size (969 KB) SIG P210-4 BGS	Full size (1.6 MB) SIG P210-4 BGS	Full size (1.6 MB) GER: Links: Griffschalen zu SIG P210-4 BGS, rechts: Griffschalen zu "normaler" SIG P210	Full size (964 KB) GER: Links: Magazin zu Pistole 49 (SIG P210) und SIG P210 Rechts: Magazin zu Pistole 75 (SIG P220) und SIG P220
Full size (938 KB) GER: Links: Magazin zu Pistole 49 (SIG P210) und SIG P210 Rechts: Magazin zu Pistole 75 (SIG P220) und SIG P220	Full size (1.1 MB) SIG P210-4 BGS	Full size (1.1 MB) SIG P210-4 BGS	Full size (1.4 MB) SIG P210-4 BGS	Full size (1.1 MB) SIG P210-4 BGS
Full size (1.1 MB) SIG P210-4 BGS	Full size (1.1 MB) GER: Magazine zur Pistole 49 (SIG P210) bzw. SIG P210 Links: erste Ausführung, glänzend Mitte: spätere Ausführung, matt Rechts: Nachbau von ProMag. Der ProMag-Nachbau funktioniert nur unzuverlässig.	Full size (1.1 MB) GER: Magazine zur Pistole 49 (SIG P210) bzw. SIG P210 Links: erste Ausführung, glänzend Mitte: spätere Ausführung, matt Rechts: Nachbau von ProMag. Der ProMag-Nachbau funktioniert nur unzuverlässig.	Full size (960 KB) GER: Magazin zur Pistole 49 (SIG P210) bzw. SIG P210, erste Ausführung, glänzend	Full size (900 KB) GER: Magazin zur Pistole 49 (SIG P210) bzw. SIG P210, spätere Ausführung, matt
Full size (951 KB) GER: Magazin zur Pistole 49 (SIG P210) bzw. SIG P210, Nachbau von ProMag. Der ProMag-Nachbau funktioniert nur unzuverlässig.	Full size (4.1 MB) SIG P210-4 BGS	Full size (810 KB) SIG P210-4 BGS	Full size (417 KB) SIG P210-4 BGS	Full size (484 KB) SIG P210-4 BGS
Full size (229 KB) SIG P210-4 BGS	Full size (211 KB) SIG P210-4 BGS	Full size (1.3 MB) SIG P210-4 BGS	Full size (1.1 MB) SIG P210-4 BGS	Full size (1.2 MB) SIG P210-4 BGS
Full size (909 KB) SIG P210-4 BGS	Full size (1.8 MB) GER: Links: Magazin zu Pistole 49 (SIG P210)/SIG P210 Mitte: Magazin zu SIG P225 Rechts: Magazin zu Pistole 75 (SIG P220)/SIG P220	Full size (1.5 MB) GER: Links: Magazin zu Pistole 49 (SIG P210)/SIG P210 Mitte: Magazin zu SIG P225 Rechts: Magazin zu Pistole 75 (SIG P220)/SIG P220	Full size (1.1 MB) SIG P210-4 BGS	Full size (994 KB) SIG P210-4 BGS
Full size (1.3 MB) SIG P210-4 BGS	Full size (553 KB) GER: Montage und Demontage bzw. Einbau und Ausbau von Kimme und Korn bei der SIG P210. Da die Nuten leicht konisch sind, müssen die Richtungen unbedingt beachtet werden!	Full size (1.6 MB) SIG P210-4 BGS	Full size (1.6 MB) SIG P210-4 BGS	Full size (1.9 MB) SIG P210-4 BGS

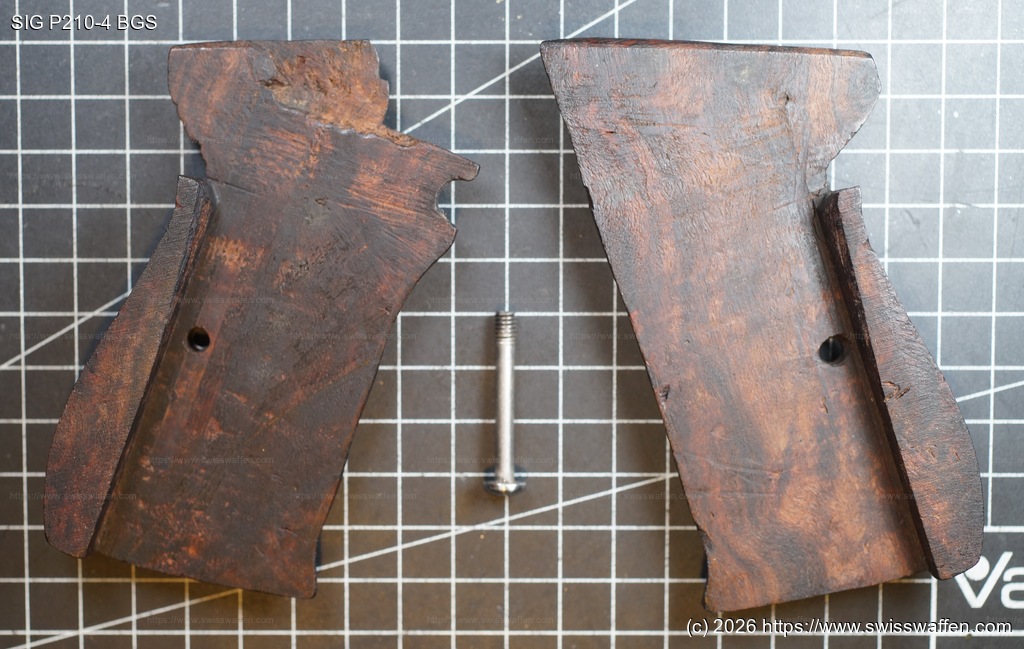

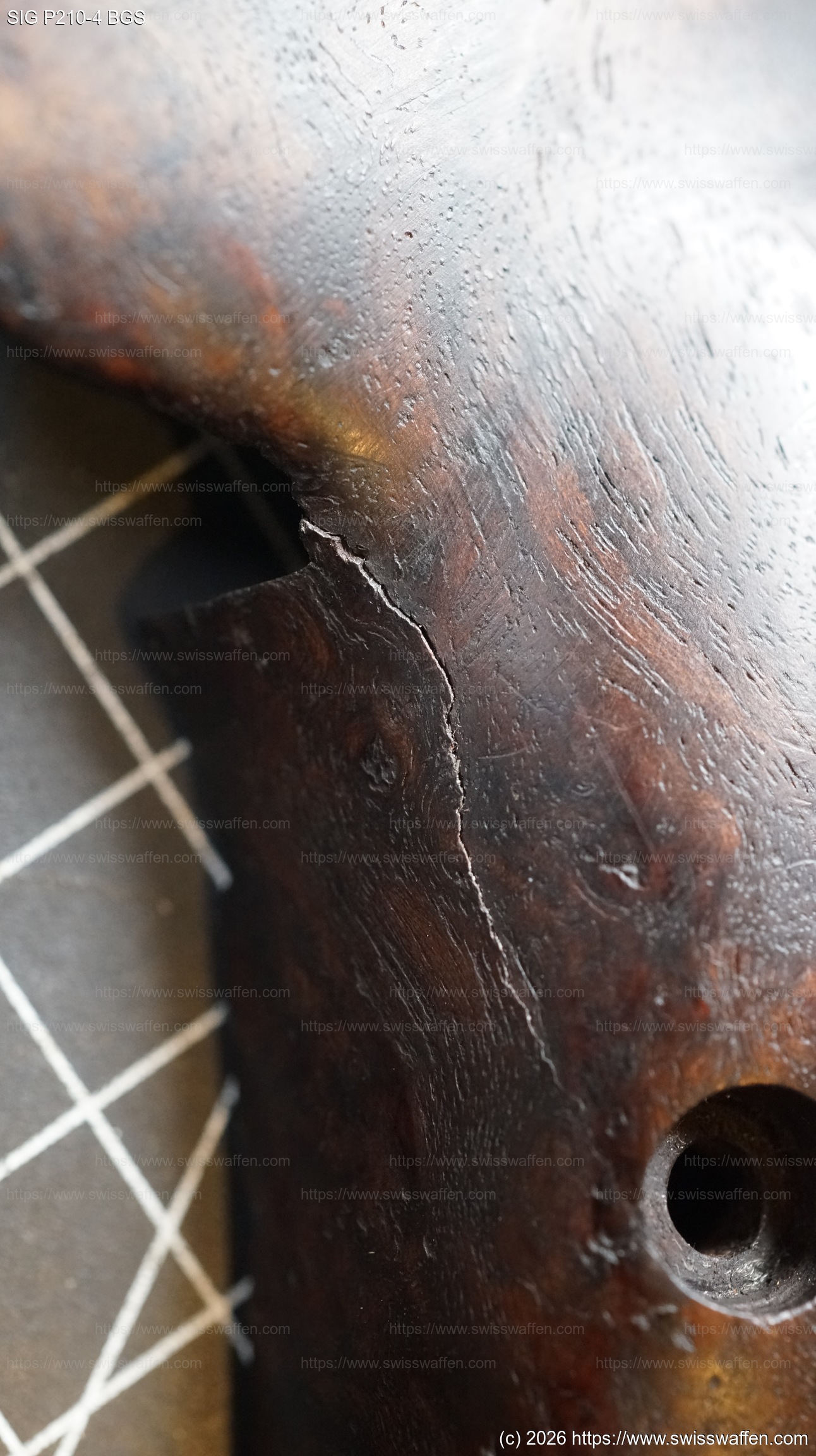

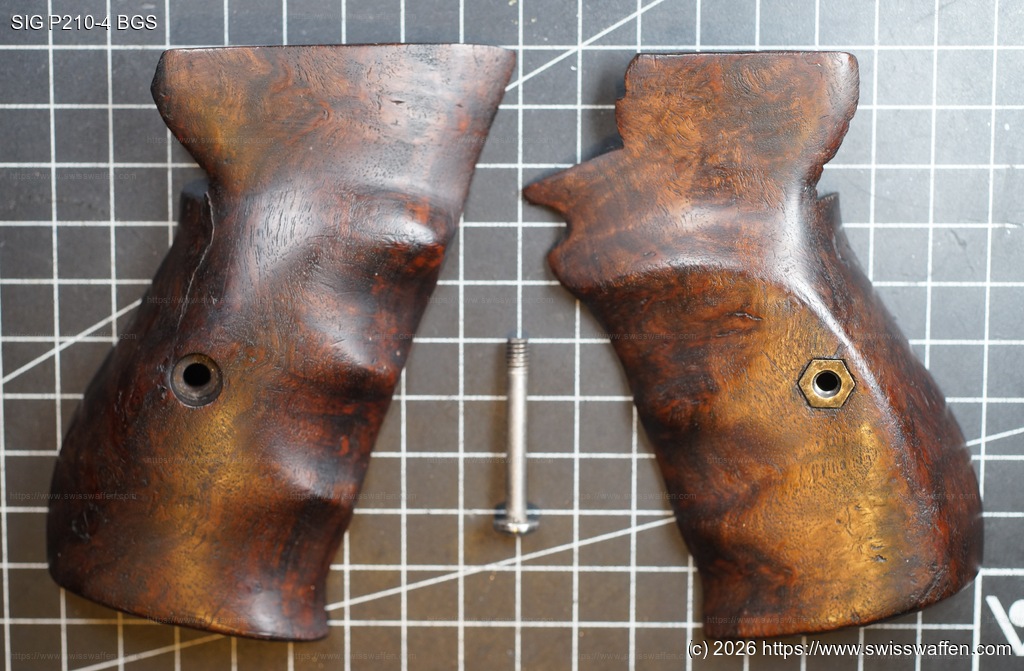

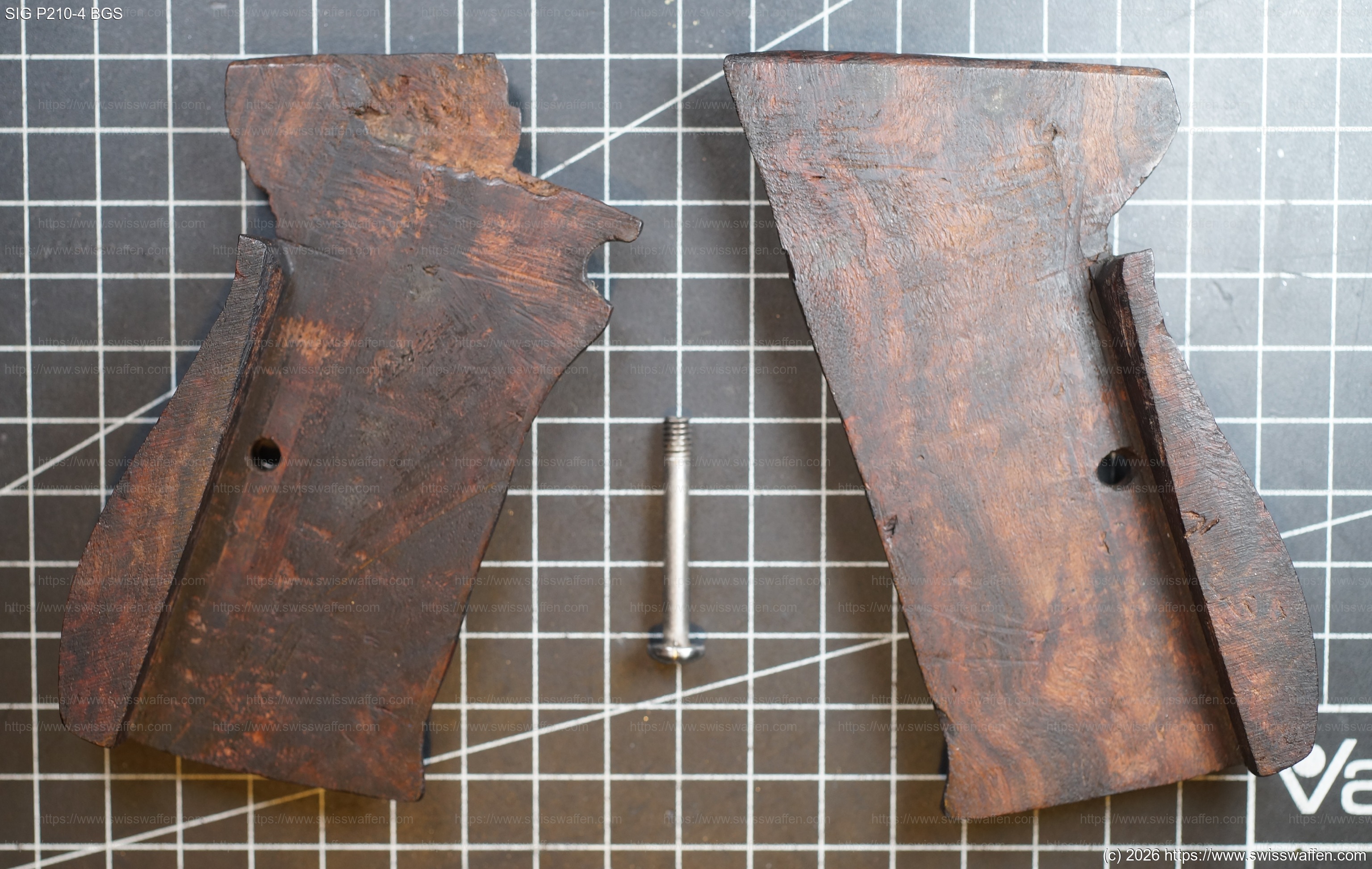

Full size (1.6 MB) SIG P210-4 BGS	Full size (1.5 MB) SIG P210-4 BGS	Full size (1.9 MB) SIG P210-4 BGS	Full size (1.3 MB) SIG P210-4 BGS	Full size (5.2 MB) Original wooden grips for the SIG 210 S.P. 47/8 or SIG P210-4 BGS and other P210 without lanyard loop. Such grips are very rare.
Full size (5.6 MB) Original wooden grips for the SIG 210 S.P. 47/8 or SIG P210-4 BGS and other P210 without lanyard loop. Such grips are very rare.




Manufacture Dates (Top):

		Serial Numbers
Year	Quantity	From	To		Remark
15.06.1951	500	D 1	D 500		SIG P210-4 BGS: Lieferung vom 15. Juni 1951 an den Bundesgrenzschutz der BRD abgeliefert. Die ersten 500 Pistolen waren mit quergerillten Holzgriffschalen ausgestattet.
1951	3710	D 501	D 4210		SIG P210-4 BGS: Nach dem 15. Juni 1951 in mehreren Chargen an den Bundesgrenzschutz der BRD abgeliefert. Die Waffen ab Nummer D 501 waren mit schwarzen Kunststoffgriffschalen ausgestattet.
1951	790	D 4211	D 5000		SIG P210-4 BGS: Ab dem 14. Dezember 1951 in mehreren Chargen an den Bundesgrenzschutz der BRD abgeliefert.
03.02.1955	21	D 5000	D 5020		SIG P210-4 BGS: Am 3. Februar 1955 an den Bundesgrenzschutz der BRD abgeliefert.
1995	500	D 6001	D 6500		SIG P210-4: 1995 wurde eine weitere Serie der SIG P210-4 von der Firma Frankonia bestellt und durch SIG speziell hergestellt. Die Waffen entsprechen genau der P210-4 BGS (hatten jedoch Holzgriffschalen) und tragen die Serienummern D 6001 bis D 6500.
	443	D 1	D 443		Kleinkaliber-Systeme zu SIG P210-4 des deutschen Bundesgrenzschutz
